Programming in Delphi
Our theory about Idealization and Materialization is no longer just
a theory. It has become a technology now! A technology that can be used e.g.
for detecting the differences in two pictures that are nearly the same, as
in some puzzles for children (called zoekplaatjes" in Dutch).
Well, here comes:
- A little piece of theory
Search for "Equality" on that page
- The application,
executable & source
Search for "exp" to find the Fuzzy Equality
(deprecated & standard Fuzzy Logic instead)
- The accompanying
picture data
(16 bit colors, unpolished)
Usage:
- Make a subdirectory & go in there
- Unzip MARGRIET (e.g. with pkunzip)
- Unzip PLAATJES (e.g. with pkunzip)
- Run Project1 (executable)
- Load 2 nearly equal pictures
- Process and watch reddish colors
In short: make a directory. Unzip everything in that directory and Run the 'exe'
files.
All source code has been included as well, for the serious programmer.
CopyRight (still?) Notice:
Pictures were taken from a more than 30 years old Dutch magazine for
women, called 'de Margriet'.
Oh yeah, besides the Fuzzy Equal, a second method of processing called
Fuzzy Logic has been included.
The latter is even more impressive.
It employs its own version of a Fuzzy Equality, which is
visualized by a second executable, called 'Project2'.
Well, here comes:
Usage:
- Make a subdirectory & go in there
- Unzip KROMMING (e.g. with pkunzip)
- Run Project1 (executable)
- Just Try. Hints provided
All source code has been included as well, for the serious programmer.
It does no harm to consult some additional theory, such as about
transformations & variances and
Best Fit Ellipses.
The program has been extended with best fit
conic sections according my contributions to the 'sci.math' thread called
Least squares fitting. It seems that the code is fool proof, because the
only case where it can go wrong is for two line segments intersecting
(a degenerated hyperbola). But I find that it doesn't go wrong in such cases.
Best Fit Straight Lines require techniques which are a bit deviant from
the above:
No pictures included.
A cloud of points is defined by clicking on the
image with the left mouse button.
A Best Fit Straight Line may be drawn
by clicking on the image with the right mouse button.
It is demonstrated with the software that it is possible, in principle, to find
the angle between two congruent pictures (squares).
It is determined, actually, whether they have the same shape, apart from
a ROTATION. The gist of the method is as follows.
Assume there exists a non-singular (= renormalized)
conservative force field between the two pictures. Then minimize energy.
Usage:
- Make a subdirectory & go in there
- Unzip KRACHTEN (e.g. with pkunzip)
- Run Project2 (executable)
- File → Open 1
- File → Open 2
- Process → Electrical / Gaussian
All source code has been included, as usual.
Recognition of Straight Lines
What's highly frustrating for a computer minded musician is the fact that those
stupid machines still aren't capable of reading decent Music Score. No, they
can't ! Even though certain brave vendors
(as always) claim that they can. Have you ever fed a hand-written document into
your scanner and expect something sensible to come out ? Neat copies - having
been generated already with a Midi to Score comverter like the (excellent !)
NoteWorthy Composer - do not represent
the real-world problem, huh ? I'm So Sorry ...
What could have been the first step in Music Score Recognition, according to my
humble viewpoint, is the faithful Recognition of Straight Lines.
End of quote.
Gradually, attention has shifted to a far more simple - and much more
mathematical - problem. There do exist Computer Algebra Systems, like for
example my favorite Maple. But why,
oh why, are computers unable to recognize elementary geometries ?
Starting with, for example, straight lines ?
Part of my dream has become true now, with the successful implementation of
theory and practice, with the following project.
- A little piece of theory
- The application, executable & source
- Many ZIPped data files
(i.e. Euclidian Geometry pictures)
- Step by step explanation of the
algorithm
(with a serious bottleneck to be reported)
Usage:
- Make a subdirectory & go in there
- Unzip ALDERS (e.g. with pkunzip)
- Run Project1 (executable)
- File → Open
- Process → Calculations
- Process → Click on Pic (or do just that)
- until enough is enough

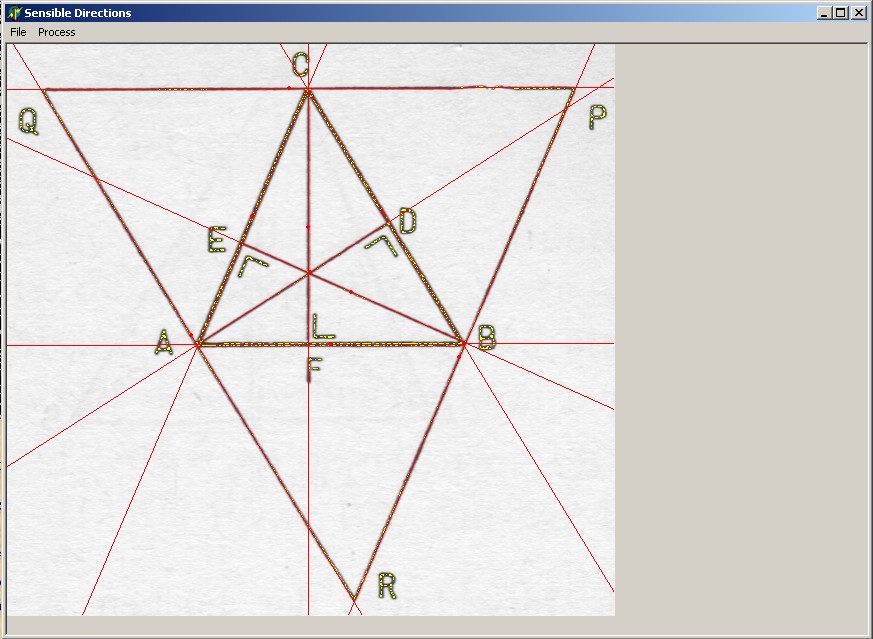

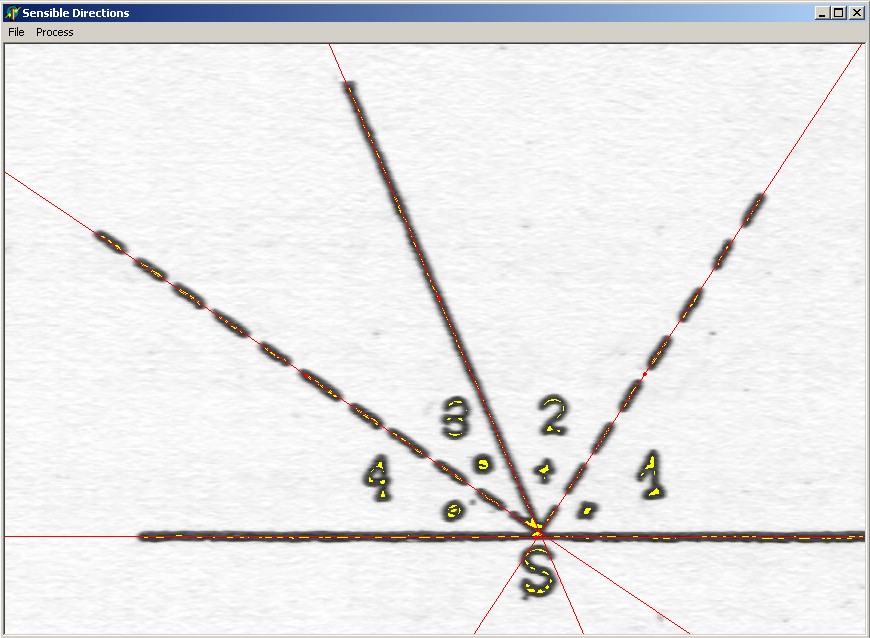

Sneaky previews:
[ 1 ] ,
[ 2 ] ,
[ 3 ] ,
[ 4 ] .
Warning:
some of the pictures may take (too) much time to accomplish, due to the
serious bottleneck still present. And pictures like
this one cannot be processed at all.
And, oh no, I couldn't believe that the so-called Hough Transform has
been a solution to my problems for some time. Claims, claims ... all over the
Pattern
Recognition place. But where is the code I that can download and execute?
Well, after publishing on
UseNet it appeared to be just there (but the link is broken now) !
There is an executable in the ZIP, called 'hough_transform.exe'.
Oh Lord, please help me to keep my big mouth shut until I know what I'm talking
about :-( But it has been fun, nevertheless ... ) The original reference is:
P.V.C. Hough, Machine Analysis of Bubble Chamber Pictures, International
Conference on High Energy Accelerators and Instrumentation, CERN, 1959.
But,
why oh why, has this technology not sunk down into Score Recognition Software ?
Anyway, the Hough Transform has been implemented now - together with the
above
- as a separate project (guess what: 'Project2', while 'Project1' implements
my own algorithm). There is an essential difference between the two approaches:
- Hough: let de data vote for - a priori - discrete models of straight lines
- HdB: let the data speak for themselves & find the models from the data

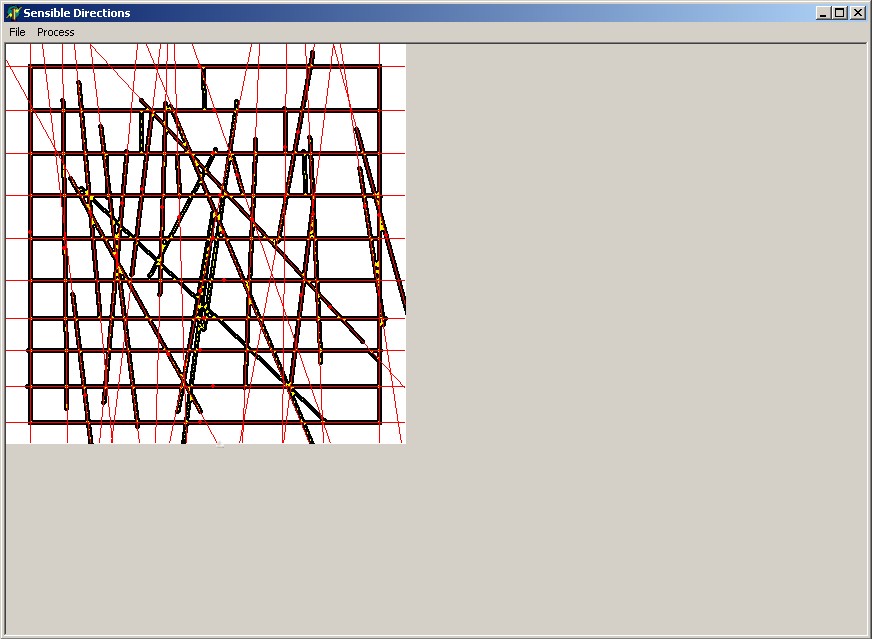

It is noted that Hough Transforms ('Project2') run into trouble with pictures
like this, which has been processed more successfully with 'Project1' software.
There is a comprehensive summary of relevant P(attern) R(ecognition) stuff
at
Richard A. Messner's web page.
Other IMO relevant writeups are 'Circle Detection Using Hough Transforms Documentation'
and 'A short introduction to the Radon and Hough transforms and how they relate to
each other'.
