Rendering of Punch Cards
Punch Cards have been a popular medium of data storage in the good old
days of computer technology. I still have a bunch of these items
at home. And once upon a day I wondered if it would still be
possible, not only to write these cards, but also to read them, back into our memory ;-)
This has lead to my software version of an IBM PunchCard Reader:
IBM Punch Card definitions are included as 'ibmkaart.txt' (must be present):
Non ASCII: a
Non Fortran: f
Card Punch: O
f a f f f a ffff ff f
&ABCDEFGHI .<(+-JKLMNOPQR!$*);0/STUVWXYZ ,%_>^ 123456789:#@'="
-----------------------------------------------------------------
2 | OOOOOOOOOOOOOOO | 2
1 | OOOOOOOOOOOOOOO | 1
0 | OOOOOOOOOOOOOOOO | 0
1 | O O O O | 1
2 | O O O O O O O O | 2
3 | O O O O O O O O | 3
4 | O O O O O O O O | 4
5 | O O O O O O O O | 5
6 | O O O O O O O O | 6
7 | O O O O O O | 7
8 | O OOOOO O OOOOO O OOOOOO O OOOOOO | 8
9 | O O O O | 9
-----------------------------------------------------------------
&ABCDEFGHI .<(+-JKLMNOPQR!$*);0/STUVWXYZ ,%_>^ 123456789:#@'=?
Precautions and Limitations:

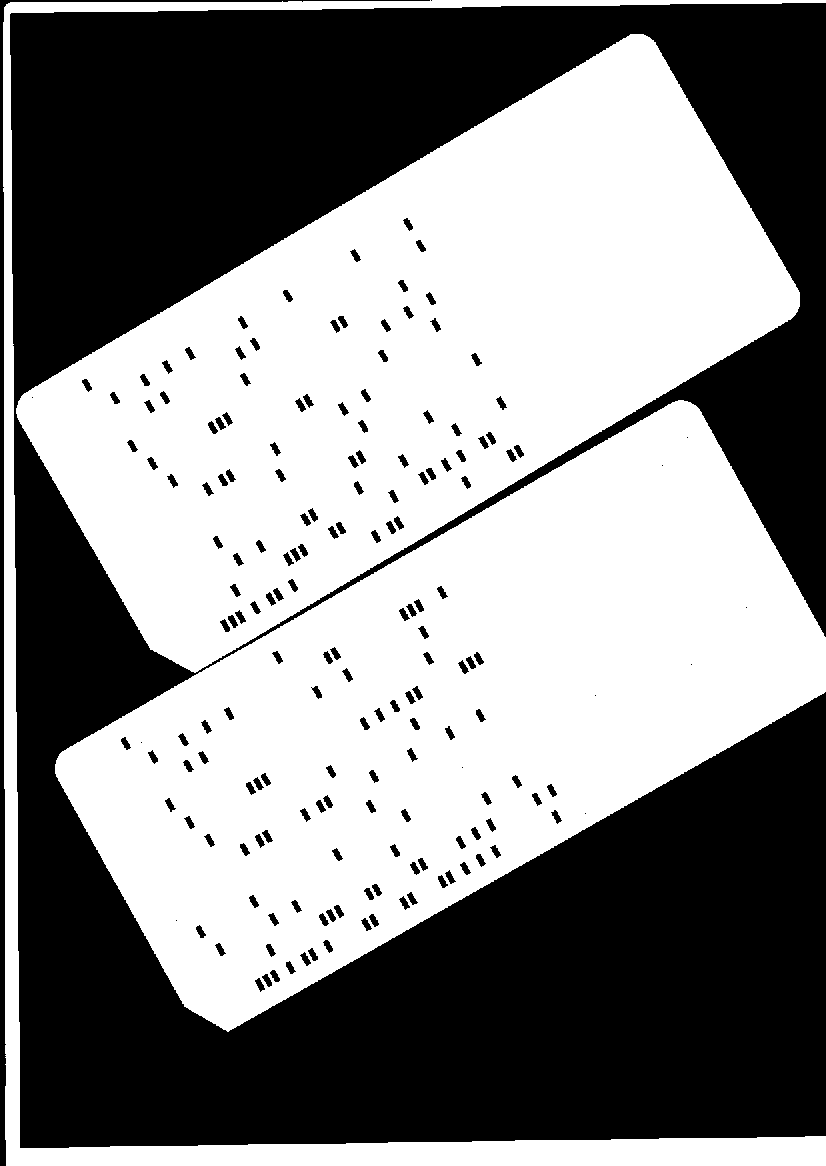

- Use a conventional flatbed (A4) scanner to scan the punchcards
- I think it's important to callibrate the scanner properly, before trying
to read in any pictures (because the program employs the resolution)
- The background color of the (white) cards should be Black. This can be
accomplished by covering them with black paper before scanning begins

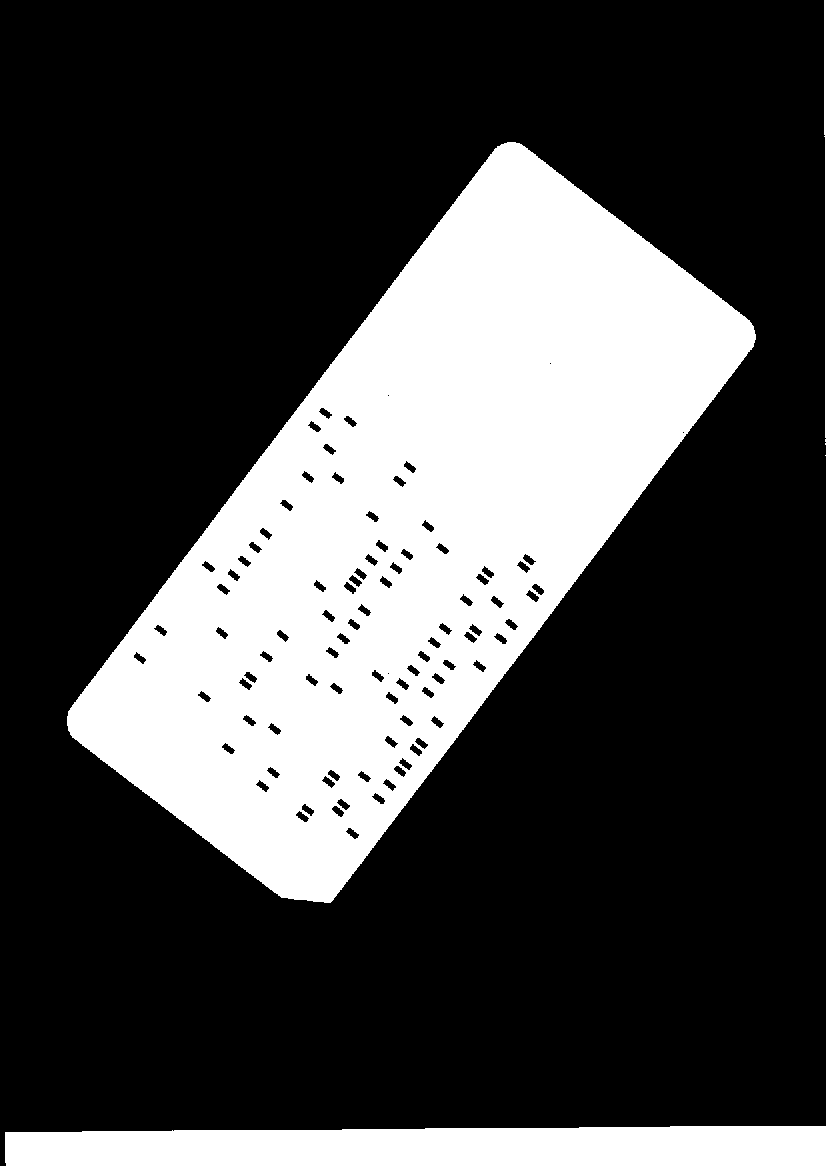

- Cards must be scanned with their backside down as the surface which
contains the data. The human-readable side should be for your eyes only ;-)

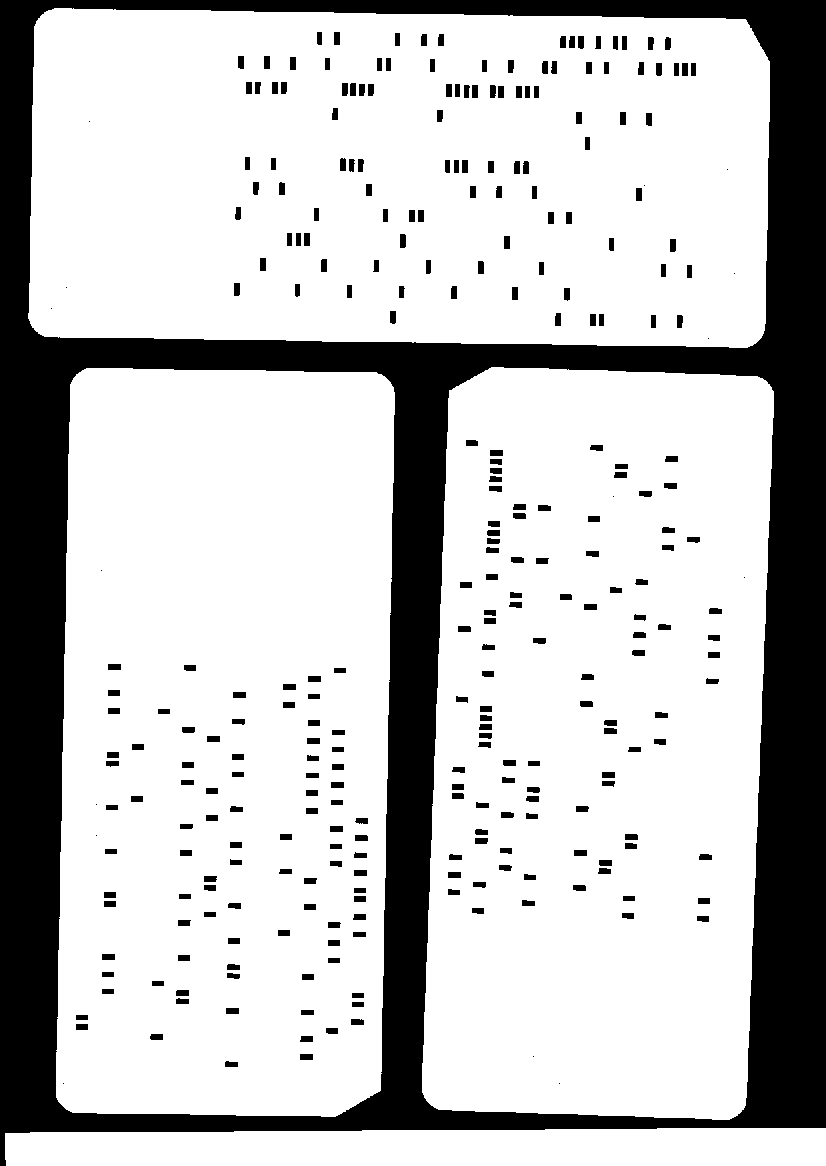

- More than one card can be processed simultaneously. However, punchcards
should Not be mutually overlapping.

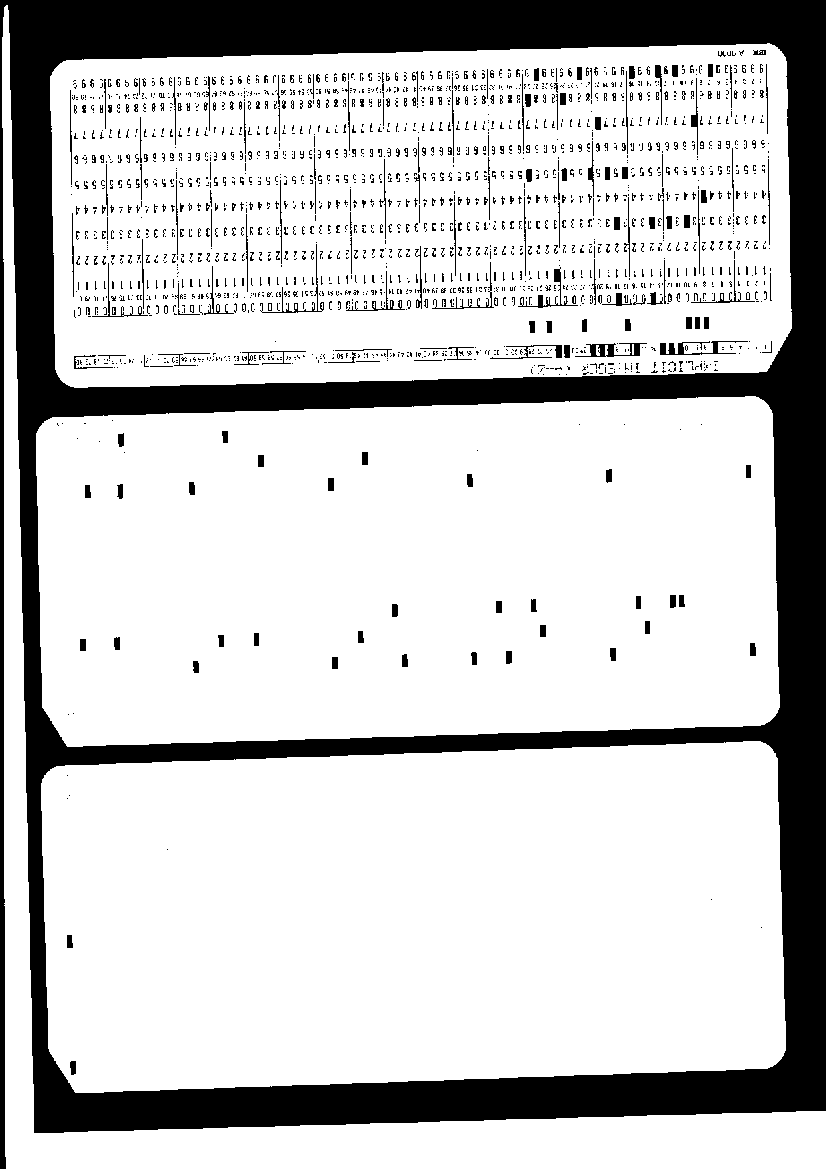

- All cards must be scanned in Black and White, resulting in monochrome
BMP files to be processed
- The examples were all scanned are at 100 DPI. Therefore I am not quite
certain
what behaviour of the program is to be expected at other resolutions.
- Due to the kind of algorithm implemented, the program behaves best
if there are as "many" data on the punchcard as possible. Degenerate cases
- such as almost empty cards - have not been tested to a sufficient extent.
